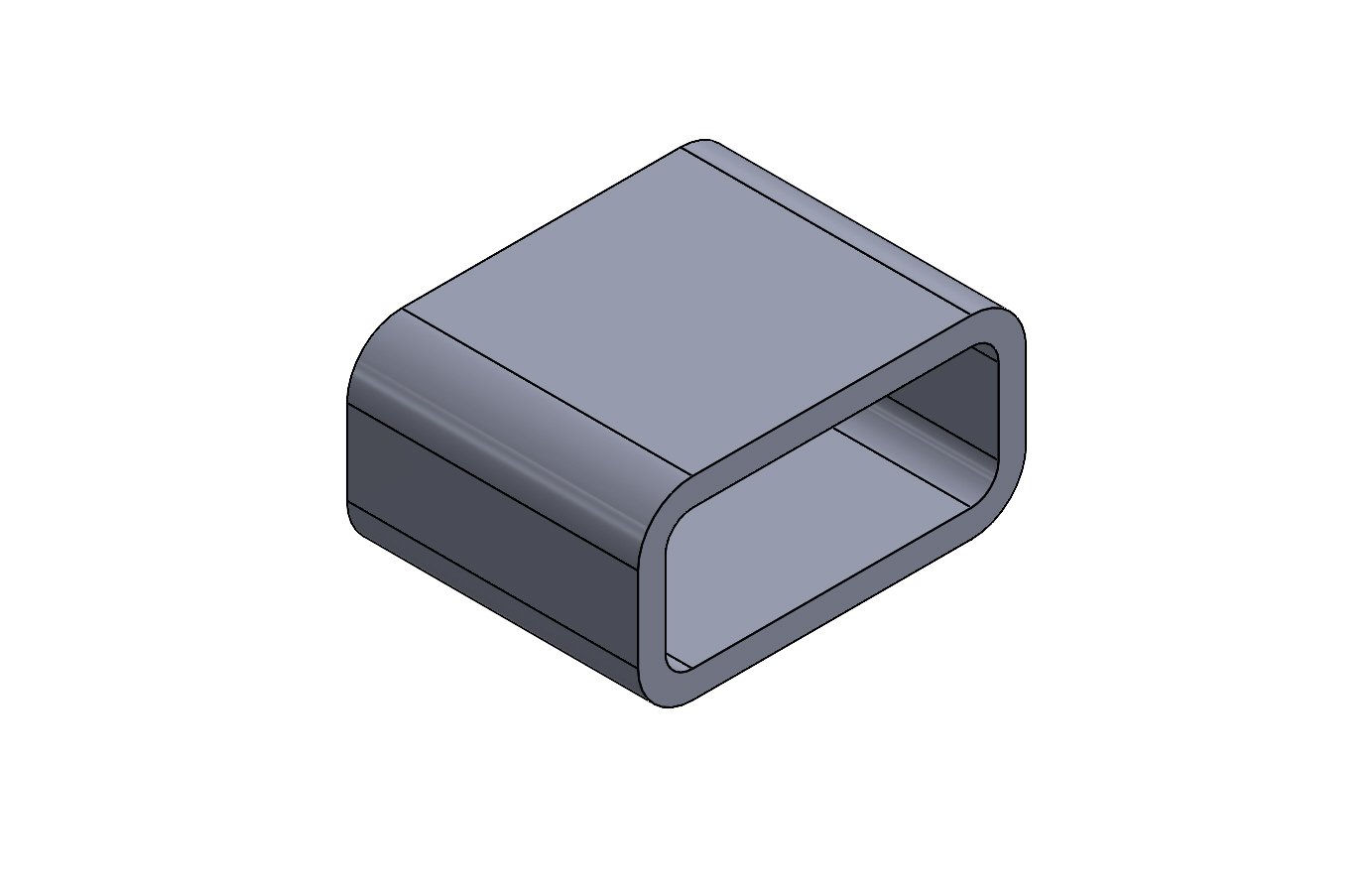

Structural Tube is a Hollow Section Formed from a Hot-Rolled Coils of Metal; Which are Cut to Width Precisely for the Section Manufactured. Afterwards it’s Formed to the Square or Rectangle Shape Required. The Seams is Welded and It’s Cut to the Specified Length to Accomplish a Singular Tube. Offered in Profile Shapes of Rectangular and Squares. Stocking Tube from 1/2” x 1/2” to 12” x 12” in Square in Standard Lengths of 24’ ft and 48’ ft. Select Sizes Available in Mechanical Tube; Decimal Thicknesses.

Structural HSS Tube is Moderately Low Cost for a Great Ratio of High Strength-to-Weight; Easily Weldable, Easily Formed, Drilled and Punched. Its Hollow Structural Shape Protects and Conceals Pipes, Electric Cables & Wires, All Types of Hoses and Designed Moving Parts. Utilized in Alternative to Solid Steel Products as a Lightweight Tube Option; e.i. Wide-Flange Beam or S-Beam. Mill Metals Has Various Different Sizes and Lengths for Hollow Structural Section Tube.

SPECIFICATIONS

ASTM Standard A500

Cold-Formed Welded and Seamless Carbon Steel Tubing in Rounds & Shapes; Covering Cold-Formed Steel Round, Square, Rectangular or Special Shape Structural Tubing for Welded, Riveted or Bolted. Four Grades are Produced Each Having Different Chemistry and Tensile Requirement. Grades B & C, being the Most Common Stock Available, Can be Subjected to Most of the Usual Fabrications. Ductility, along with Bends, Flattens, Cuts, Punches, Flares, Flanges are Well and Easily Welded.

ASTM A513 Mechanical Tubing

Steel Mechanical Tubing is Utilized in Consumer-Based Applications that Require More Accurate Tolerances and Not Holden to the Load-Bearing Strength of the Material Tube.

Able to Provide Mill Certificate

Call (603) 626-7351 to Place An Order



TUBES STEEL

Home > All Products > Tube HSS & Mechanical Steel

Mechncl .065” .083”

MECHANICAL TUBES .065” (16ga):

Tube Sq 1/2” x 1/2” x .065” MT (.39lbft)

Tube Sq 3/4” x 3/4” x .065” MT (.65lbft)

Tube Sq 1” x 1” x .065” MT (.82lbft)

Tube Sq 1-1/4” x 1-1/4” x .065” MT (1.08lbft)

Tube Sq 1-1/2” x 1-1/2” x .065” MT (1.27lbft)

Tube Sq 2” x 2” x .065” MT (1.71lbft)

MECHANICAL TUBES .083” (14ga):

Tube 3/4” x 3/4” x .083” MT (.81lbft)

Tube 1” x 1” x .083” MT (1.03lbft)

Tube 1-1/4” x 1-1/4” x .083” MT (1.37lbft)

Tube 1-1/2” x 1-1/2” x .083” MT (1.60lbft)

Tube 2” x 2” x .083” MT (2.16lbft)

Tube Rect. 1-1/2” x 1” x .083” MT (1.50lbft)

Tube Rect. 2” x 1” x .083” MT (1.60lbft)

.125” (1/8”) thick

TUBE SQUARE .125” HSS (1/8”):

Tube 1”x1”x.125” (1/8”) (.39lbft)

Tube 1-1/4”x1-1/4”x.125” (1/8”) (1.93lbft)

Tube 1-1/2”x1-1/2”x.125” (1/8”) (2.21lbft)

Tube 1-3/4”x1-3/4”x.125” (1/8”) (2.76lbft)

Tube 2”x2”x.125” (1/8”) (3.06lbft)

Tube 2-1/2”x2-1/2”x.125” (1/8”) (3.98lbft)

Tube 3”x3”x.125” (1/8”) (4.76lbft)

Tube 4”x4”x.125” (1/8”) (6.53lbft)

TUBE RECTANGLE .125” HSS (1/8”):

Tube Rect. 1-1/2”x1”x.125” (1/8”) (1.84lbft)

Tube Rect. 2”x1”x.125” (1/8”) (2.20lbft)

Tube Rect. 2”x1-1/2”x.125” (1/8”) (2.80lbft)

Tube 2-1/2”x1-1/2”x.125” (1/8”) (3.06lbft)

Tube Rect. 3”x1”x.125” (1/8”) (3.07lbft)

Tube Rect. 3”x1-1/2”x.125” (1/8”) (3.49lbft)

Tube Rect. 3”x2”x.125” (1/8”) (3.98lbft)

Tube Rect. 4”x2”x.125” (1/8”) (4.83lbft)

Tube Rect. 4”x3”x.125” (1/8”) (5.68lbft)

Tube Rect. 5”x2”x.125” (1/8”) (5.60lbft)

Tube Rect. 5”x3”x.125” (1/8”) (6.33lbft)

Tube Rect. 6”x2”x.125” (1/8”) (6.46lbft)

.188” (3/16”) thick

TUBE SQUARE .188” HSS (3/16”):

Tube 1.5” x 1.5” x .188” (3.35lbft)

Tube 2” x 2” x .188” (4.33lbft)

Tube 2.5” x 2.5” x .188” (5.61lbft)

Tube 3” x 3” x .188” (6.89lbft)

Tube 3-1/2”x3-1/2”x.188” (8.17lbft)

Tube 4” x 4” x .188” (9.45lbft)

Tube 4.5” x 4.5” x .188” (10.71lbft)

Tube 5” x 5” x .188” (12.00lbft)

Tube 6” x 6” x .188” (14.56lbft)

TUBE RECTANGLE .188” HSS (3/16”):

Tube 2-1/2”x1-1/2”x.188” (3/16”) (4.33lbft)

Tube Rect. 3”x1-1/2”x.188” (3/16”) (5.07lbft)

Tube Rect. 3”x2”x.188” (3/16”) (5.61lbft)

Tube Rect. 4”x2”x.188” (3/16”) (6.89lbft)

Tube Rect. 4”x3”x.188” (3/16”) (8.17lbft)

Tube Rect. 5”x2”x.188” (3/16”) (8.17lbft)

Tube Rect. 6”x2”x.188” (3/16”) (9.45lbft)

Tube Rect. 6”x3”x.188” (3/16”) (10.70lbft)

Tube Rect. 6”x4”x.188” (3/16”) (12.00lbft)

Tube Rect. 8”x2”x.188” (3/16”) (12.00lbft)

Tube Rect. 10”x2”x.188” (3/16”) (14.56lbft)

.250” (1/4”) THICK

TUBE SQUARE .250” HSS (1/4”):

Tube 1.5” x 1.5” x .250” (4.25lbft)

Tube 2” x 2” x .250” (5.41lbft)

Tube 2.5” x 2.5” x .250” (7.11lbft)

Tube 3” x 3” x .250” (8.81lbft)

Tube 3.5” x 3.5” x .250” (10.51lbft)

Tube 4” x 4” x .250” (12.20lbft)

Tube 5” x 5” x .250” (15.62lbft)

Tube 6” x 6” x .250” (19.02lbft)

Tube 8” x 8” x .250” (25.82lbft)

Tube 10” x 10” x .250” (32.63lbft)

Tube 12” x 12” x .250” (39.44lbft)

TUBE RECTANGLE .250” HSS (1/4”):

Tube Rect. 3” x 2” x .250” (7.11lbft)

Tube Rect. 4”x 2” x .250” (8.81lbft)

Tube Rect. 4” x 3” x .250” (10.51lbft)

Tube Rect. 5”x2”x.250” (1/4”) (10.51lbft)

Tube Rect. 5”x3”x.250” (1/4”) (12.25lbft)

Tube Rect. 6”x2”x.250” (1/4”) (12.21lbft)

Tube Rect. 6”x3”x.250” (1/4”) (15.86lbft)

Tube Rect. 6”x4”x.250” (1/4”) (15.62lbft)

Tube Rect. 8”x2”x.250” (1/4”) (15.62lbft)

Tube Rect. 8”x3”x.250” (1/4”) (17.32lbft)

Tube Rect. 8”x4”x.250” (1/4”) (19.02lbft)

Tube Rect. 8”x6”x.250” (1/4”) (22.42lbft)

Tube Rect. 10”x2”x.250” (1/4”) (19.02lbft)

Tube Rect. 10”x4”x.250” (1/4”) (22.42lbft)

Tube Rect. 12”x2”x.250” (1/4”) (22.42lbft)

Tube Rect. 12”x4”x.250” (1/4”) (25.82lbft)

Tube Rect. 12”x6”x.250” (1/4”) (29.23lbft)

.313” (5/16”) THICK

TUBE SQUARE .313” HSS (5/16”):

Tube Sq. 3” x 3” x .313” (5/16”) (10.59lbft)

Tube Sq. 3-1/2” x 3-1/2” x .313” (5/16”) (13.00lbft)

Tube Sq. 4” x 4” x .313” (5/16”) (14.83lbft)

Tube Sq. 5” x 5” x .313” (5/16”) (19.08lbft)

Tube Sq. 6” x 6” x .313” (5/16”) (23.34lbft)

.375” (3/8”) THICK

TUBE SQUARE .375” HSS (3/8”):

Tube 3”x3”x.375” (3/8”) (12.16lbft)

Tube 4”x4”x.375” (3/8”) (17.27lbft)

Tube 5”x5”x.375” (3/8”) (22.37lbft)

Tube 6”x6”x.375” (3/8”) (27.48lbft)

Tube 8”x8”x.375” (3/8”) (37.69lbft)

Tube 10”x10”x.375” (3/8”) (47.90lbft)

Tube 12”x12”x.375” (3/8”) (58.10lbft)

TUBE RECTANGLE .375” HSS (3/8”):

Tube Rect. 4”x2”x.375” (3/8”) (12.15lbft)

Tube Rect. 4”x3”x.375” (3/8”) (14.71lbft)

Tube Rect. 5”x2”x.375” (3/8”) (14.71lbft)

Tube Rect. 5”x3”x.375” (3/8”) (17.27lbft)

Tube Rect. 6”x2”x.375” (3/8”) (17.27lbft)

Tube Rect. 6”x3”x.375” (3/8”) (19.82lbft)

Tube Rect. 6”x4”x.375” (3/8”) (22.37lbft)

Tube Rect. 8”x4”x.375” (3/8”) (27.48lbft)

Tube Rect. 8”x6”x.375” (3/8”) (32.58lbft)

Tube Rect. 10”x4”x.375” (3/8”) (32.58lbft)

Tube Rect. 10”x6”x.375” (3/8”) (37.69lbft)

Tube Rect. 12”x4”x.375” (3/8”) (37.69lbft)

Tube Rect. 12”x6”x.375” (3/8”) (42.80lbft)

Tube Rect. 12”x8”x.375” (3/8”) (47.90lbft)

.500” (1/2”) THICK

TUBE SQUARE .500” HSS (1/2”):

Tube 4”x4”x.500” (1/2”) (21.63lbft)

Tube 5”x5”x.500” (1/2”) (28.43lbft)

Tube 6”x6”x.500” (1/2”) (35.24lbft)

Tube 8”x8”x.500” (1/2”) (48.85lbft)

Tube 10”x10”x.500” (1/2”) (62.46lbft)

Tube 12”x12”x.500” (1/2”) (76.07lbft)

TUBE RECTANGLE .500” HSS (1/2”):

Tube Rect. 6”x4”x.500” (1/2”) (28.44lbft)

Tube Rect. 8”x4”x.500” (1/2”) (35.24lbft)

Tube Rect. 8”x6”x.500” (1/2”) (42.03lbft)

Tube Rect. 10”x6”x.500” (1/2”) (48.85lbft)

Tube Rect. 12”x8”x.500” (1/2”) (62.46lbft)

More Sizes Available Upon Request
