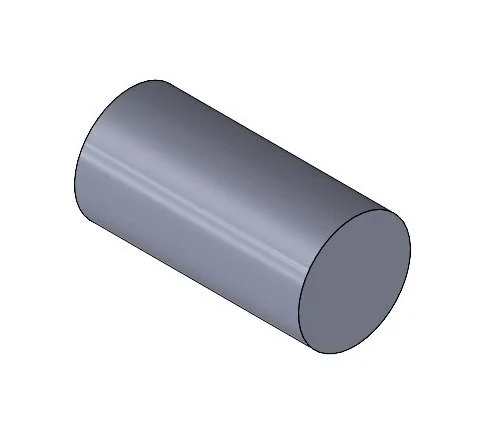

Round Diameter Bar Products are Made of Hot-Rolled and Cold-Rolled Carbon Steel. Offering Many Different Diameters, Lengths and Specifications. Stock Rounds from 1/4” Dia. to 3” Dia. in 20’ ft Lengths, and CR Round in 10’ - 20’ ft Lengths. Also Many Other D.O.M. Rounds also Available Upon Request.
Merchant Bar Quality: Commodity Steel Shapes that Consist of Rounds, Squares, Flats, Strips, Angles and Channels. Steel Service Centers and Manufacturers and Fabricators would Cut, Bend, Form, Burn, Cope & Drill the Steel Products.
Specifications
ASTM A36 Standard: Defined as Low-Carbon Steels that are Commonly Utilized in Construction and the Heavy Equipment Industries. The American Society for Testing and Materials (ASTM) Identify A36 by Its Chemical Composition and Mechanical Properties; Especially Yield Strength Reaching a Minimum of 36,000 psi.
Low Carbon 1018: A Medium Manganese Content. Has Good Hardening Properties, Fair Machinability and is Excellent for Cold-Bending and Forming Operations. Readily Brazed, Welded and Suitable for Shafting. Conforms to ASTM A-108 and AMS 5069. (Except for Bars Under 2-15/16” Dia. and Sizes Lighter than 29.34 lbs per Foot).
Able to Provide Mill Certificate
Call (603) 626-7351 to Place An Order
HOT-ROLLED ROUND DIAMETER (HR RND)
Home > All Products > Round Dia.
HR ROUND DIAMETER
HR ROUND DIA. : 20’
HR Round Dia. x 1/4” (.16lbft)
HR Round Dia. x 5/16” (.26lbft)
HR Round Dia. x 3/8” (.37lbft)
HR Round Dia. x 7/16” (.51lbft)
HR Round Dia. x 1/2” (.66lbft)
HR Round Dia. x 5/8” (1.04lbft)
HR Round Dia. x 3/4” (1.50lbft)
HR Round Dia. x 7/8” (2.04lbft)
HR Round Dia. x 1” (2.67lbft)
HR Round Dia. x 1-1/8” (3.38lbft)
HR Round Dia. x 1-1/4” (4.17lbft)
HR Round Dia. x 1-3/8” (5.04lbft)
HR Round Dia. x 1-1/2” (6.01lbft)
HR Round Dia. x 1-5/8” (7.05lbft)
HR Round Dia. x 1-3/4” (8.18lbft)
HR Round Dia. x 2” (10.68lbft)
HR Round Dia. x 2-1/4” (13.52lbft)
HR Round Dia. x 2-1/2” (16.70lbft)
HR Round Dia. x 3” (24.05lbft)
HR Round Dia. x 3-1/2” (32.71lbft)
HR Round Dia. x 4” (42.73lbft)
HR Round Dia. x 6” (96.13lbft)
HR Round Dia. x 7” (131.00lbft)
HR Round Dia. x 8” (171.00lbft)
HR Round Dia. x 10” (267.00lbft)
Certain Larger Diameter Available Upon Request
COLD-ROLLED 1018 ROUND DIAMETER (CF RND)
Low Carbon 1018: A Medium Manganese Content. Has Good Hardening Properties, Fair Machinability and is Excellent for Cold-Bending and Forming Operations. Conforms to ASTM A-108 and AMS 5069.
COLD-FORMED ROUND DIA.
COLD-ROLLED ROUND DIA. 1018: 12’ - 20’
CR Round Dia. x 1/8” (.04lbft)
CR Round Dia. x 3/16” (.09lbft)
CR Round Dia. x 1/4” (.16lbft)
CR Round Dia. x 5/16” (.26lbft)
CR Round Dia. x 3/8” (.37lbft)
CR Round Dia. x 7/16” (.51lbft)
CR Round Dia. x 1/2” (.66lbft)
CR Round Dia. x 9/16” (.84lbft)
CR Round Dia. x 5/8” (1.04lbft)
CR Round Dia. x 3/4” (1.50lbft)
CR Round Dia. x 7/8” (2.04lbft)
CR Round Dia. x 1” (2.70lbft)
CR Round Dia. x 1-1/8” (3.38lbft)
CR Round Dia. x 1-1/4” (4.17lbft)
CR Round Dia. x 1-5/16” (4.60lbft)
CR Round Dia. x 1-3/8” (5.05lbft)
CR Round Dia. x 1-1/2” (6.01lbft)
CR Round Dia. x 1-5/8” (7.05lbft)
CR Round Dia. x 1-11/16” (7.60lbft)
CR Round Dia. x 1-3/4” (8.18lbft)
CR Round Dia. x 1-7/8” (9.39lbft)
CR Round Dia. x 1-15/16” (9.39lbft)
CR Round Dia. x 2” (10.68lbft)
CR Round Dia. x 2-1/8” (10.68lbft)
CR Round Dia. x 2-3/16” (10.68lbft)
CR Round Dia. x 2-1/4” (13.75lbft)
CR Round Dia. x 2-3/8” (15.06lbft)
CR Round Dia. x 2-7/16” (15.06lbft)
CR Round Dia. x 2-1/2” (16.69lbft)
CR Round Dia. x 2-3/4” (20.19lbft)
CR Round Dia. x 3” (24.03lbft)
CR Round Dia. x 3-1/4” (28.20lbft)
CR Round Dia. x 3-1/2” (32.71lbft)
CR Round Dia. x 4” (42.72lbft)
Larger Diameter Rounds Available Upon Request
OTHER ROUND DIAMETER OPTIONS
6061-T6 Aluminum & TG&P Round Diameter
ALUMINUM ROUND DIAMETER 6061-T6
Aluminum Alloy 6061: Medium to High Strength Heat-Treatable Alloy. Has Very Good Corrosion Resistance and Very Good Weldability although Reduced Strength in the Weld Zone. It has Medium Fatigue Strength. Ultimate Tensile Strength of at Least 42,000 psi (290 MPa) and Yield Strength of at Least 35,000 psi (241 MPa).
ALUMINUM ROUND DIA.
ALUMINUM ROUND DIA. 6061-T6: 12’ - 20’
Aluminum Round Dia. x 1/4” (.05lbft)
Aluminum Round Dia. x 5/16” (.09lbft)
Aluminum Round Dia. x 3/8” (.13lbft)
Aluminum Round Dia. x 1/2” (.23lbft)
Aluminum Round Dia. x 5/8” (.36lbft)
Aluminum Round Dia. x 3/4” (.51lbft)
Aluminum Round Dia. x 7/8” (.70lbft)
Aluminum Round Dia. x 1” (.92lbft)
Aluminum Round Dia. x 1-1/4” (1.44lbft)
Aluminum Round Dia. x 1-1/2” (2.07lbft)
Aluminum Round Dia. x 2” (2.69lbft)
Aluminum Round Dia. x 2-1/2” (5.76lbft)
Aluminum Round Dia. x 2-3/4” (6.97lbft)
Aluminum Round Dia. x 3” (8.30lbft)
Aluminum Round Dia. x 3-1/2” (11.30lbft)
Aluminum Round Dia. x 4” (14.75lbft)
Aluminum Round Dia. x 5” (23.04lbft)
Aluminum Round Dia. x 6” (33.93lbft)
Aluminum Round Dia. x 8” (60.32lbft)
Aluminum Round Dia. x 9” (76.34lbft)
Aluminum Round Dia. x 10” (94.25lbft)
Aluminum Round Dia. x 12” (133.00lbft)
Larger Diameter Rounds Available Upon Request
TURNED, GROUND & POLISHED SHAFTING (TG&P)
Sized Extremely Accuracy, in Straightness and in Concentricity to Minimize Wear in High-Speed Applications. Can be Machined Unsymmetrically, as in Key-Seating, with Minimum Distortion because Cold Drawing Strains are not Developed. Combine the Strength Advantages of Cold-Drawn Stock with Extra Accuracy and Lustrous Finish. Conforms to ASTM A-108 and QQ-S-637.
Classification of Finishing Processes often Used for Metal Shafting. Turned on a Lathe to Create Straight Round Bars without the Strain Induced by Cold-Drawing, while Grinding & Polishing Betters the Surface Finish and Roundness for High Dimensional Accuracy.
TG&P ROUND
All D.O.M. Diameter Round Shafts Available Upon Request
COLD-ROLLED ROUND DIA. 1018: 12’ - 20’
TG&P Round Dia. x 3/8” (.37lbft)
TG&P Round Dia. x 1/2” (.66lbft)
TG&P Round Dia. x 5/8” (1.04lbft)
TG&P Round Dia. x 11/16” (1.26lbft)
TG&P Round Dia. x 3/4” (1.50lbft)
TG&P Round Dia. x 13/16” (1.76lbft)
TG&P Round Dia. x 7/8” (2.10lbft)
TG&P Round Dia. x 1” (2.67lbft)
TG&P Round Dia. x 1-1/8” (2.67lbft)
TG&P Round Dia. x 1-3/16” (3.77lbft)
TG&P Round Dia. x 1-1/4” (4.17lbft)
TG&P Round Dia. x 1-5/16” (4.60lbft)
TG&P Round Dia. x 1-3/8” (5.05lbft)
TG&P Round Dia. x 1-7/16” (5.52lbft)
TG&P Round Dia. x 1-1/2” (6.01lbft)
TG&P Round Dia. x 1-11/16” (7.60lbft)
More Diameters Also Available On Inquiry
All D.O.M. Diameter Round Shafts Available Upon Request
