Select for Hardox’s Official Website

Hardox® Wear Plate has a Unique Combination of Hardness and Toughness, Making it Both Wear and Crack Resistant. Stock Sizes in (8’ x 24’). Depending on Your Particular Wear Situation Hardox® Wear Plate can Improve Performance and Increase Service Life Several Times Compared to other AR Steel Grades. Industries Such As: Construction, Quarry, Roadbuilding, Mining, Recycling, Metal Works, Coal & Energy, Concrete, Agriculture, Cement and Forestry & Fishing.

Wear Plate Parts: Drag Slat Conveyor Liners, Asphalt Plant Ductwork, Flighting, Liner Plates, Chute Liners, Grizzly Bars & Seats, Scraper Liners, Hopper Liners, Cutting Edges, Wear Bars& Pads, Beveled Plow Blades, Loader Bucket Liners, Truck Bed Liners, Crusher Liners, Hammers, Feeders, Transfer Points, Rock Box Liners, Shear Blades, Sprocket Wheels, Shovel Bucket Loners, Tamper Shoes, Drag Line Bucket Liners, Underground Miners, Fan Blades, Paddles, Fan Housing, Cone Crusher Main Frame Liners, Screeners & Screen Decks, Jaw Crusher, Cavity Walls, Shanks, Pulverizer Jaws & Teeth, Cheek Plates, Skid Plates, Screed Plates,

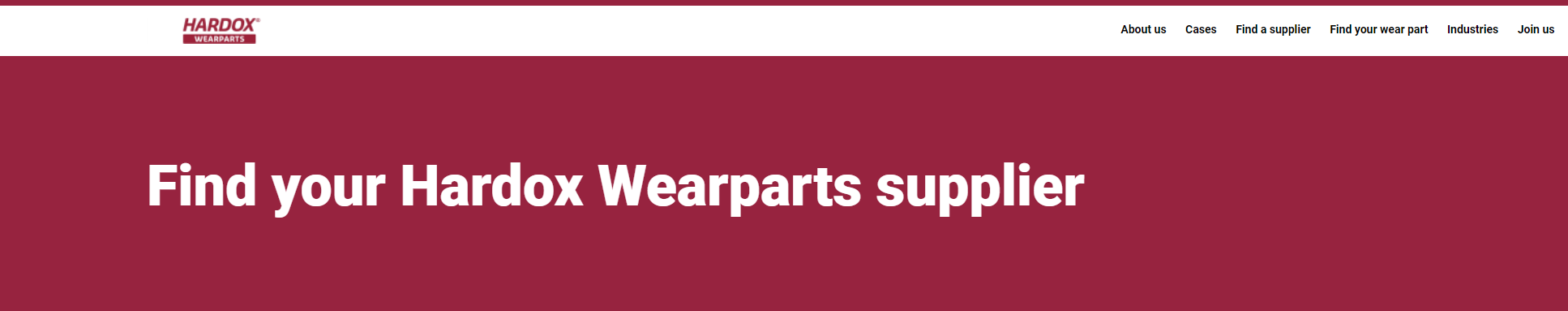

Select Here to Find A HARDOX Distributor in Your Area

Specifications

Hardox® 450: Brinell hardness, HBW, according to EN ISO 6506-1, on a milled surface 0.5 – 3 mm below surface. At least one test specimen per heat and 40 tons. Hardness test is not performed or guaranteed for Hardox 450 cold rolled material. The hardness interval is a conversion from the tensile strength. The nominal thickness of supplied plates will not deviate more than +/- 15 mm from the thickness of the test specimen used for hardness testing.

Hardox® 500: Brinell hardness, HBW, according to EN ISO 6506-1, on a milled surface 0.5 – 3 mm below surface. At least one test specimen per heat and 40 tons. The nominal thickness of supplied plates will not deviate more than +/- 15 mm from the thickness of the test specimen used for hardness testing. For sheet the Brinell hardness test is according to EN ISO 6506-1 on each heat treatment individual/coil. Hardness is measured on a milled surface 0.3 - 2 mm below surface.

Able to Provide Mill Certificate

Select for the Official Hardox Webpage

Call (603) 626-7351 to Place An Order



Home > All Products > Hardox® 450 & 500

HARDOX® 450 (8’ x 24’)

Most Popular Abrasion-Resistant Steel with Excellent Structural Properties

An Abrasion-Resistant Steel with a Nominal Hardness of 450 HBW; Which Combines Good Bendability and Weldability. Used in Numerous Components and Structures that are Subject to Wear. An Extra 50 Brinell Hardness over Grade 400, Provides better Dent and Abrasion Resistance Along with Longer Wear Life, Achieving Greater Expense Savings.

HARDOX® 450

COMMON PLATES:

Plate AR Hardox® 450 x 3/16” (7.66lbft)

Plate AR Hardox® 450 x 1/4” (10.21lbft)

Plate AR Hardox® 450 x 3/8” (15.32lbft)

Plate AR Hardox® 450 x 1/2” (20.42lbft)

Plate AR Hardox® 450 x 5/8” (25.53lbft)

Plate AR Hardox® 450 x 3/4” (30.63lbft)

Plate AR Hardox® 450 x 1” (40.80lbft)

THICKER PLATES:

Plate AR Hardox® 450 x 1-1/4” (51.05lbft)

Plate AR Hardox® 450 x 1-1/2” (61.26lbft)

Plate AR Hardox® 450 x 2” (81.69lbft)

Plate AR Hardox® 450 x 2-1/2” (102.15lbft)

Plate AR Hardox® 450 x 3” (122.55lbft)

HARDOX® 500 (8’ x 24’)

Bendable, Weldable & Highly Abrasion-Resistant Steel

A Bendable and Weldable Abrasion-Resistant Steel, with a Nominal Hardness of 500 HBW. Suitable for Applications that Demand a Higher Need for Wear Resistance; which Increases Payload and Increases Service Life while Maintaining Good Processability and Toughness.

HARDOX® 500

COMMON PLATES:

Plate AR Hardox® 500 x 1/8” (5.10lbft) New

Plate AR Hardox® 500 x 1/4” (10.21lbft)

Plate AR Hardox® 500 x 3/8” (15.32lbft)

Plate AR Hardox® 500 x 1/2” (20.42lbft)

Plate AR Hardox® 500 x 5/8” (25.53lbft)

Plate AR Hardox® 500 x 3/4” (30.63lbft)

Plate AR Hardox® 500 x 1” (40.80lbft)

THICKER PLATES:

Plate AR Hardox® 500 x 1-1/4” (51.05lbft)

Plate AR Hardox® 500 x 1-1/2” (61.26lbft)

Plate AR Hardox® 500 x 2” (81.69lbft)

Plate AR Hardox® 500 x 2-1/2” (102.15lbft)

Plate AR Hardox® 500 x 3” (122.55lbft)

OTHER PLATE OPTIONS

AR Regular & Formable Plates & A36 Mild Steel Plates



AR-400F & AR-400 (8’ x 24’)

Quenched & Tempered, Through-Hardened, Abrasion-Resistant Grade.

Specialized Plate is Designed for Applications that Demand Both Wear Resistance and Impact Toughness. AR400F Displays an Optimal Combination of Hardness, Abrasion Resistance, Formability, and Weldability. The Typical Brinell Hardness Range is 360-444 BHN

Mechanical Properties:

Tensile: 180-200 ksi. Yield: 140 ksi. Elongation: 14.8% in 8”. Brinell: 360 min/ 400 nominal

AR-400 plate (8’x24’)

FORMABLE AR-400 PLATE:

AR-400F x 3/16” Formable (7.66lbft)

AR-400F x 1/4” Formable (10.21lbft)

AR-400F x 3/8” Formable (15.32lbft)

AR-400F x 1/2” Formable (20.42lbft)

AR-400F x 5/8” Formable (25.53lbft)

AR-400F x 3/4” Formable (30.63lbft)

AR-400F x 1” Formable (40.84lbft)

REGULAR AR-400 PLATE:

AR-400 Regular x 3/8” (15.32lbft)

AR-400 Regular x 1/2” (20.42lbft)

AR-400 Regular x 5/8” (25.53lbft)

AR-400 Regular x 3/4” (30.63lbft)

AR-400 Regular x 1” (40.84lbft)

AR-400 FLAT BAR 20’

AR-400 FLAT, ABRASIVE-RESISTANCE: 20’

AR-400 Flat 1/4” x 2” (1.70lbft)

AR-400 Flat 1/4” x 3” (2.55lbft)

AR-400 Flat 1/4” x 4” (3.40lbft)

AR-400 Flat 1/4” x 6” (5.10lbft)

AR-400 Flat 3/8” x 2” (2.55lbft)

AR-400 Flat 3/8” x 3” (3.82lbft)

AR-400 Flat 3/8” x 4” (5.10lbft)

AR-400 Flat 3/8” x 6” (7.65lbft)

AR-400 Flat 1/2” x 2” (3.40lbft)

AR-400 Flat 1/2” x 3” (5.10lbft)

AR-400 Flat 1/2” x 4” (6.80lbft)

AR-400 Flat 1/2” x 6” (10.20lbft)

AR-400 Flat 3/4” x 2” (5.10lbft)

AR-400 Flat 3/4” x 3” (7.65lbft)

AR-400 Flat 3/4” x 4” (10.20lbft)

AR-400 Flat 3/4” x 6” (15.30lbft)

AR-400 Flat 1” x 2” (6.80lbft)

AR-400 Flat 1” x 3” (10.20lbft)

AR-400 Flat 1” x 4” (13.60lbft)

AR-400 Flat 1” x 6” (20.40lbft)

ASTM A36 PLATES (8’ x 20’)

Low-Carbon A36 Steel with Excellent Fabrication Properties

Grade is Popularly Used for Most General Fabrication and Structural Purposes such as Steel Building Components. Because of its Large Variety of Applications, it’s Commonly Stocked in a Much Inventory of this Grade.

Mechanical Properties:

Tensile: 58 to 80 ksi. Yield: 36 ksi min. Elongation: 18% min in 8” 21% min in 2” (for plates wider than 24”)

A36 PLATE

COMMON PLATES: (8’ x 20’)

Plate HR A36 x 3/16” (7.65lbft)

Plate HR A36 x 1/4” (10.21lbft)

Plate HR A36 x 5/16” (12.76lbft)

Plate HR A36 x 3/8” (15.32lbft)

Plate HR A36 x 1/2” (20.42lbft)

Plate HR A36 x 5/8” (25.53lbft)

Plate HR A36 x 3/4” (30.63lbft)

Plate HR A36 x 1” (40.84lbft)

Plate HR A36 x 1-1/4” (51.05lbft)

Plate HR A36 x 1-1/2” (61.26lbft)

Plate HR A36 x 2” (81.68lbft)

THICKER, LESS-COMMON PLATES: (8’ x 20’)

Plate HR A36 x 7/8” (35.73lbft)

Plate HR A36 x 1-1/8” (45.95lbft)

Plate HR A36 x 1-3/4” (71.46lbft)

Plate HR A36 x 2-1/2” (102.10lbft)

Plate HR A36 x 3” (122.52lbft)

Plate HR A36 x 3-1/2” (142.93lbft)

Plate HR A36 x 4” (163.35lbft)
