Low-Carbon A36 Steel with Excellent Fabrication Properties

Grade is Popularly Used for Most General Fabrication and Structural Purposes such as Steel Building Components. Because of its Large Variety of Applications, is Commonly Stocked in High Level of Inventory Quantity of this Grade. Stock Diamond Plate in 14 Gauge (.74”) to 1/2” Thick. Also Referred as Floor Plate. Ranges from (48”x96”) to (60”x120”)

MECHANICAL PROPERTIES:

ASTM A36 Standard: Tensile: 58 to 80 ksi. Yield: 36 ksi min. Elongation: 18% min in 8” 21% min in 2” (for plates wider than 24”)

Able to Provide Mill Certificate

Call (603) 626-7351 to Place An Order



DIAMOND PLATE, ASTM A36 (4’ x 8’) - (5’ x 10’)

Quonset-Hut Plywood Sizes

Home > All Products > Diamond Plate (Floor Plate)

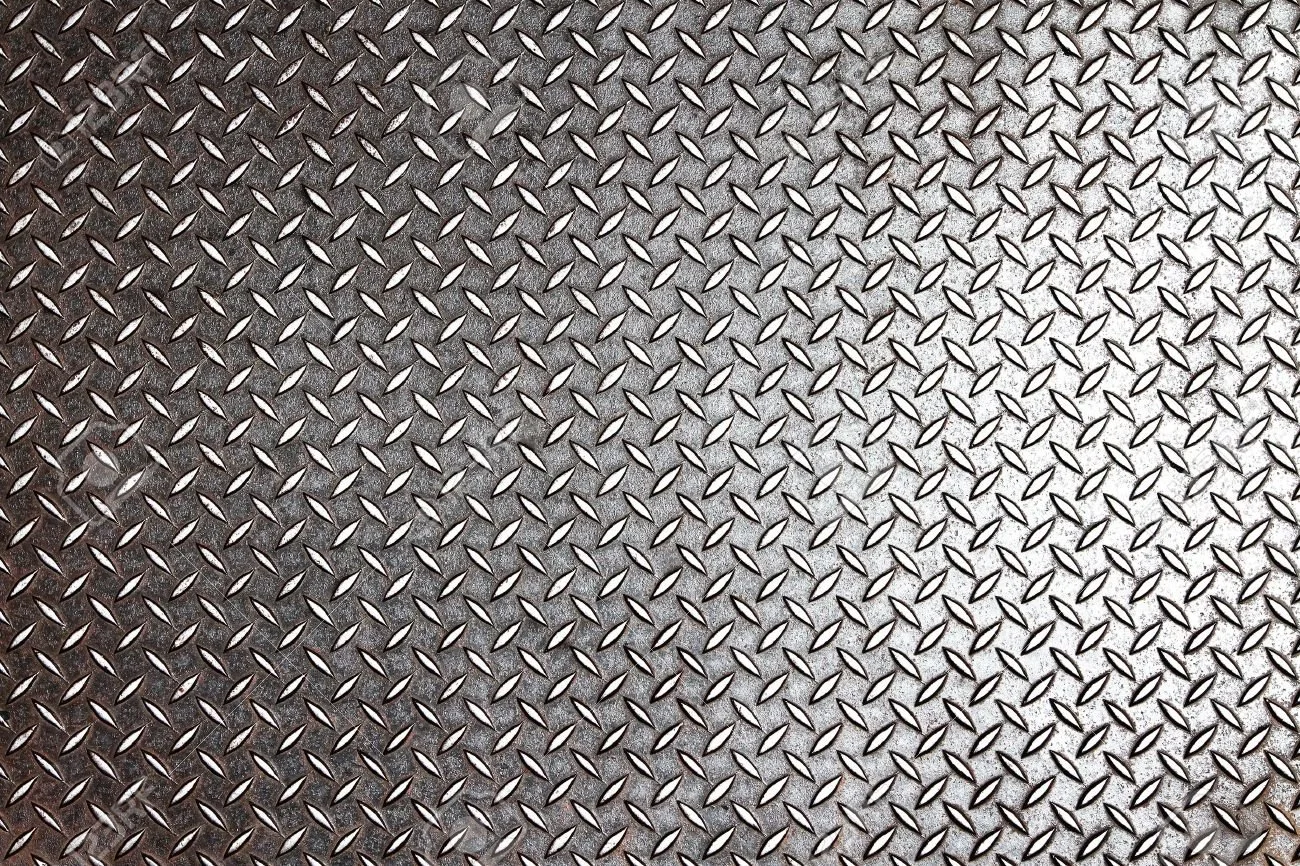

diamond plate

DIAMOND PLATE (FLOOR PLATE): (4’x8’), (4’x10’) & (5’x10’)

Diamond Plate x 14 Gauge (.074”) (3.75lbft)

Diamond Plate x 1/8” (6.16lbft)

Diamond Plate x 3/16” (8.71lbft)

Diamond Plate x 1/4” (11.26lbft)

Diamond Plate x 3/8” (16.37lbft)

Diamond Plate x 1/2” (21.48lbft)


ASTM A36 PLATES (4’ x 8’) - (5’ x 10’)

Quonset-Hut Plywood Sizes

A36 plate

A36 HR PLATES: (4’x8’), (4’x10’) & (5’x10’)

Plate HR A36 x 3/16” (7.66lbft)

Plate HR A36 x 1/4” (10.21lbft)

Plate HR A36 x 5/16” (12.76lbft)

Plate HR A36 x 3/8” (15.32lbft)

Plate HR A36 x 1/2” (20.42lbft)


SHEET HOT-ROLLED (4’ x 8’) - (6’ x 10’)

Quonset-Hut Plywood Sizes

a36 sheet hr

A36 SHEET HOT-ROLLED: (4’x8’), (4’x10’), (5’x10’) & (6’x10’)

Addition Option: 6’ Wide (72”)

Sheet HR x 10ga (.134”) (5.62lbft)

Sheet HR x 11ga (.119”) (5.00lbft)

Sheet HR x 12ga (.104”) (4.37lbft)

Sheet HR x 14ga (.074”) (3.12lbft)

Sheet HR x 16ga (.059”) (2.50lbft)


ASTM A36 PLATES (8’ x 20’)

Outdoor Plate Size

A36 plate

COMMON PLATES: (8’ x 20’)

Plate HR A36 x 3/16” (7.65lbft)

Plate HR A36 x 1/4” (10.21lbft)

Plate HR A36 x 5/16” (12.76lbft)

Plate HR A36 x 3/8” (15.32lbft)

Plate HR A36 x 1/2” (20.42lbft)

Plate HR A36 x 5/8” (25.53lbft)

Plate HR A36 x 3/4” (30.63lbft)

Plate HR A36 x 1” (40.84lbft)

Plate HR A36 x 1-1/4” (51.05lbft)

Plate HR A36 x 1-1/2” (61.26lbft)

Plate HR A36 x 2” (81.68lbft)

THICKER, LESS-COMMON PLATES: (8’ x 20’)

Plate HR A36 x 7/8” (35.73lbft)

Plate HR A36 x 1-1/8” (45.95lbft)

Plate HR A36 x 1-3/4” (71.46lbft)

Plate HR A36 x 2-1/2” (102.10lbft)

Plate HR A36 x 3” (122.52lbft)

Plate HR A36 x 3-1/2” (142.93lbft)

Plate HR A36 x 4” (163.35lbft)



OTHER PLATE & SHEET OPTIONS

1018 Cold-Rolled Sheet, A36 Galvanized Sheet, 5052 & 3003 Aluminum Plates

COLD-FORMED CARBON SHEET

Commercial-Quality Sheets Produced from Low-Carbon Steel; Intended for Exposed / Unexposed Parts Which Involves Forming, Bending, Welding or Moderate Drawing. Greater Degree of Ductility with More Consistent Performance in Higher Standards in Processing of Steel, Production and Selection. Surface Face is a Dull-Matte Slightly-Oiled Finished Texture.

Sheet cr 1018

SHEET COLD-ROLLED 1018: (4’x8’)

Sheet Cold-Rolled x 10ga (.134”) (5.62lbft)

Sheet Cold-Rolled x 11ga (.119”) (5.00lbft)

Sheet Cold-Rolled x 12ga (.107”) (4.37lbft)

Sheet Cold-Rolled x 14ga (.074”) (3.12lbft)

Sheet Cold-Rolled x 16ga (.059”) (2.50lbft)

SHEET COLD-ROLLED 1018: (4’x8’)

Sheet Cold-Rolled x 18ga (.047”) (2.00lbft)

Sheet Cold-Rolled x 20ga (.035”) (1.50lbft)

Sheet Cold-Rolled x 22ga (.029”) (1.25lbft)

Sheet Cold-Rolled x 24ga (.023”) (1.00lbft)

(Other Widths & Lengths Possibly Available)


GALVANIZED SHEET

Excellent for Corrosive Weather Conditions that Require an Extra Measure of Assurance & Protection. Such As Near the Waterfront, Seacoast or Extreme Outdoor Locations; Part Due to its Durability & Low-Cost Associated with Galvanizing Steel.

A36 Galv.

GALVANIZED SHEET A36: (4’x8’), (4’x10’) & (5’x10’)

Sheet Galvanized x 10ga (.134”) (5.78lbft)

Sheet Galvanized x 11ga (.123”) (5.15lbft)

Sheet Galvanized x 12ga (.108”) (4.53lbft)

Sheet Galvanized x 14ga (.078”) (3.28lbft)

Sheet Galvanized x 16ga (.063”) (2.65lbft)

Sheet Galvanized x 18ga (.051”) (2.15lbft)

GALVANIZED SHEET A36: (4’x8’), (4’x10’) & (5’x10’)

Sheet Galvanized x 20ga (.039”) (1.65lbft)

Sheet Galvanized x 22ga (.033”) (1.41lbft)

Sheet Galvanized x 24ga (.027”) (1.15lbft)

Sheet Galvanized x 26ga (.021”) (0.91lbft)

(Other Widths & Lengths Possibly Available)


ALUMINUM SHEET, PLATES & DIAMOND PLATE

Aluminum 5052: Alloyed using Magnesium (2.5%) and Possess Moderate-to-High Strength Characteristics. Considered to have Good Weldability and Resistance to Corrosion.

Aluminum 3003: Contains 1.25% Manganese & 0.1% Copper, Increases the Strength Approximately 20% above the 1000 Series Aluminum Grades. Widely Used of Aluminum Alloys and Has Excellent Characteristics of Alloy 1100 with Higher Strength.

Alumnm 5052 3003

ALUMINUM SHEETS & PLATES 5052: (4’x8’), (4’x10’) & (5’x10’)

Sheet Aluminum x .063” 5052 (0.90lbft)

Sheet Aluminum x .090” 5052 (1.28lbft)

Aluminum Plate x 3/16” 5052 (2.64lbft)

Aluminum Plate x 1/4” 5052 (3.52lbft)

Aluminum Plate x 3/8” 5052 (5.29lbft)

ALUMINUM DIAMOND PLATE 3003: (4’x8’), (4’x10’) & (5’x10’)

Aluminum Diamond Plt x 1/8” 3003 (1.90lbft)

Aluminum Diamond Plt x 3/16” 3003 (2.80lbft)

Aluminum Diamond Plt x 1/4” 3003 (3.70lbft)

Aluminum Diamond Plt x 3/8” 3003 (5.50lbft)

(Other Widths & Lengths Possibly Available)
