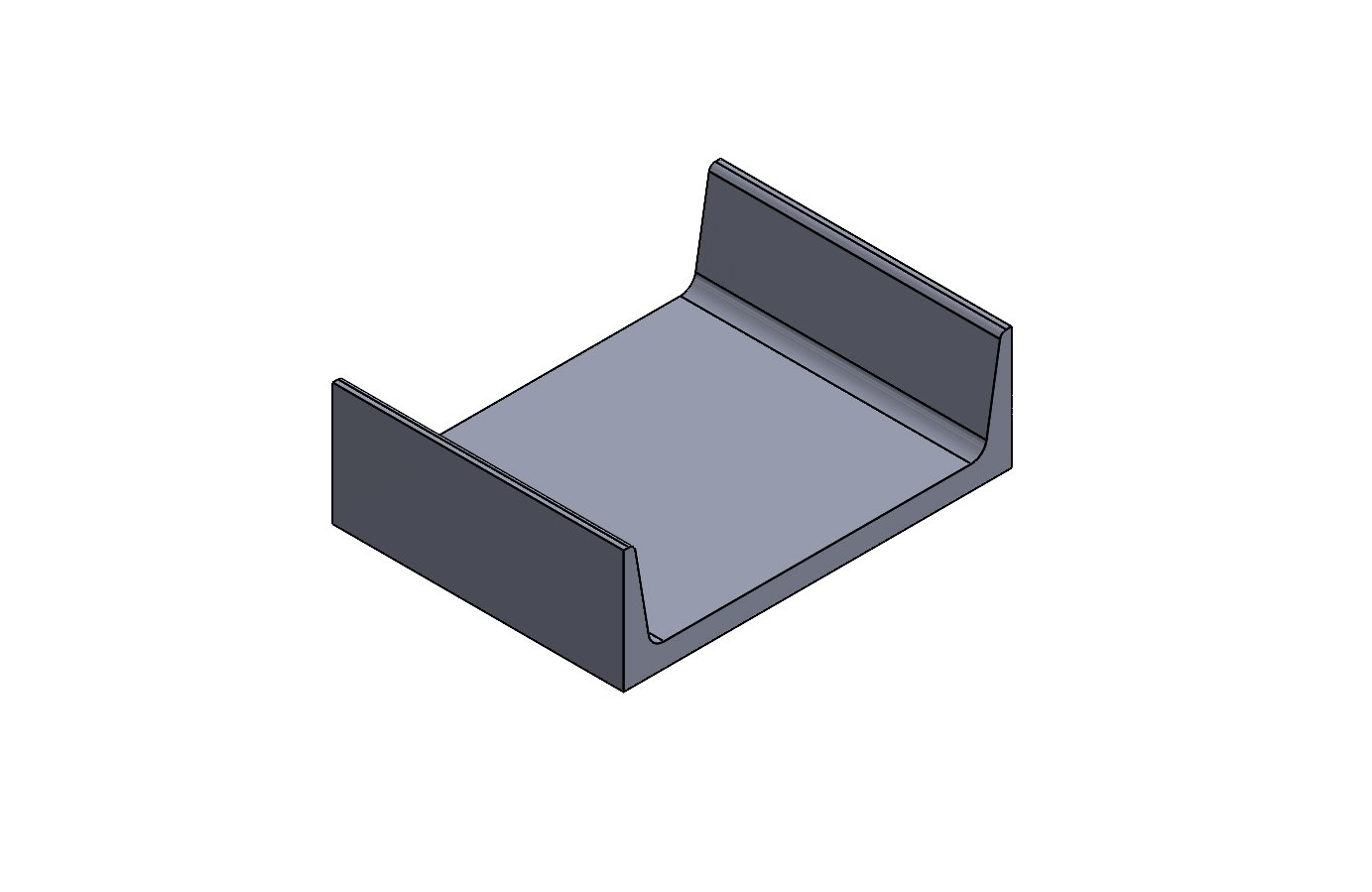

Channels have an C-Shaped Extrusion Mold That are Used in Many Structural Steel Implementations. Offering a Variety of Different Sizes & Lengths. Stock Ranges of C 3”x 3.5 to C 15”x 33.9 in Lengths of 20’ & 40’ ft. MC Channels are Stocked from a MC 3”x 7.1 to MC 12”x 35 in Lengths up to 40’ ft. Two Different Sizes Available as Galvanized, also.

Bar Channels are 2” and Narrower Channels Solely Stocked in 20’ foot in Length. Used in Smaller Structures and Cross Bracing.

Merchant Bar Quality: Commodity Steel Shapes that Consist of Rounds, Squares, Flats, Strips, Angles and Channels. Steel Service Centers and Manufacturers and Fabricators would Cut, Bend, Form, Burn, Cope & Drill the Steel Products.

Specifications

ASTM A36 Standard: is defined as Low-Carbon Steels that are Commonly Utilized in Construction and the Heavy Equipment Industries. The American Society for Testing and Materials (ASTM) Identify A36 by Its Chemical Composition and Mechanical Properties; Especially Yield Strength Reaching a Minimum of 36,000 psi.

Able to Provide Mill Certificate

Call (603) 626-7351 to Place An Order



CHANNEL and MC CHANNEL, STEEL & GALVANIZED

Home > All Products > Channel Steel & Galvanized

3” Wide

CHANNEL: 20’ & 40’

Channel 3” x 3.5 (1/8” Web)

Channel 3” x 4.1 (3/16” Web)

Channel 3” x 5 (1/4” Web)

Channel 3” x 6 (5/16” Web)

MISC. CHANNEL:

Misc. C 3” x 7.1 (5/16” Web)



GALVANIZED CHANNEL: 20’

Galvanized Channel 3” x 4.1 (3/16” Web, 4.42lbft Galvanized Weight)


4” WIDE

CHANNEL: 20’ & 40’

Channel 4” x 5.4 (3/16” Web)

Channel 4” x 6.25 (1/4” Web)

Channel 4” x 7.25 (5/16” Web)

MISC. CHANNEL:

Misc. C 4” x 13.8 (1/2” Web)



GALVANIZED CHANNEL: 20’

Galvanized Channel 4” x 5.4 (3/16” Web, 5.83lbft Galvanized Weight)


5” Wide

CHANNEL: 20’ & 40’

Channel 5” x 6.7 (3/16” Web)

Channel 5” x 9 (5/16” Web)


6” wide

CHANNEL: 20’ & 40’

Channel 6” x 8.2 (3/16” Web)

Channel 6” x 10.5 (5/16” Web)

Channel 6” x 13 (7/16” Web)

MISC. CHANNEL: 20’ & 40’

Misc. C 6” x 12 (5/16” Web, 2-1/2” Flange)

Misc. C 6” x 15.3 (5/16” Web, 3-1/2” Flange)

Misc. C 6” x 16.3 (3/8” Web, 3” Flange)

Misc. C 6” x 18 (3/8” Web, 3-1/2” Flange)

More Sizes Available Upon Request


7” wide

CHANNEL: 20’ & 40’

Channel 7” x 9.8 (3/16” Web)

Channel 7” x 12.25 (5/16” Web)

Channel 7” x 14.75 (7/16” Web)


8” wide

CHANNEL: 20’ & 40’

Channel 8” x 11.5 (1/4” Web)

Channel 8” x 13.75 (5/16” Web)

Channel 8” x 18.75 (1/2” Web)

MISC. CHANNEL: 20’ & 40’

Misc. C 8” x 8.5 (3/16” Web)

Misc. C 8” x 18.7 (3/8” Web, 3” Flange)

Misc. C 8” x 20 (3/8” Web, 3” Flange)

Misc. C 8” x 22.8 (7/16” Web, 3-1/2” Flange)

More Sizes Available Upon Request


9” wide

CHANNEL: 20’ & 40’

Channel 9” x 13.4 (1/4” Web)

Channel 9” x 15 (5/16” Web)

Channel 9” x 20 (7/16” Web)


10” wide

CHANNEL: 20’ & 40’

Channel 10” x 15.3 (1/4” Web)

Channel 10” x 20 (3/8” Web)

Channel 10” x 25 (1/2” Web)

Channel 10” x 30 (11/16” Web)

MISC. CHANNEL: 20’ & 40’

Misc. C 10” x 8.4 (3/16” Web)

Misc. C 10” x 22 (5/16” Web)

Misc. C 10” x 25 (3/8” Web, 3-3/8” Flange)

Misc. C 10” x 33.6 (9/16” Web)

More Sizes Available Upon Request


12” wide

CHANNEL: 20’ & 40’

Channel 12” x 20.7 (5/16” Web)

Channel 12” x 25 (3/8” Web)

Channel 12” x 30 (1/2” Web)

MISC. CHANNEL: 20’ & 40’

Misc. C 12” x 10.6 (3/16” Web)

Misc. C 12” x 14.3 (1/4” Web)

Misc. C 12” x 31 (3/8” Web)

Misc. C 12” x 35 (7/16” Web)

Misc. C 12” x 50 (13/16” Web)

More Sizes Available Upon Request


15” wide

CHANNEL: 20’ & 40’

Channel 15” x 33.9 (3/8” Web)

Channel 15” x 50 (11/16” Web)

More Sizes Available Upon Request

BAR CHANNEL, STEEL

Home > All Products > Bar Channel, Steel

1” - 2” BAR CHANNEL

Bar Channel

BAR CHANNEL: 20’

Bar Channel 1” x 1/2” x 1/8” Web ( .84lbft)

Bar Channel 1-1/4” x 1/2” x 1/8” Web (1.01lbft)

Bar Channel 1-1/2” x 1/2” x 1/8” Web (1.12lbft)

Bar Channel 2” x 1/2” x 1/8” Web (1.43lbft)

Bar Channel 2” x 1” x 1/8” Web (1.78lbft)

Bar Channel 2” x 1” x 3/16” Web (2.32lbft)

More Sizes Available Upon Request
