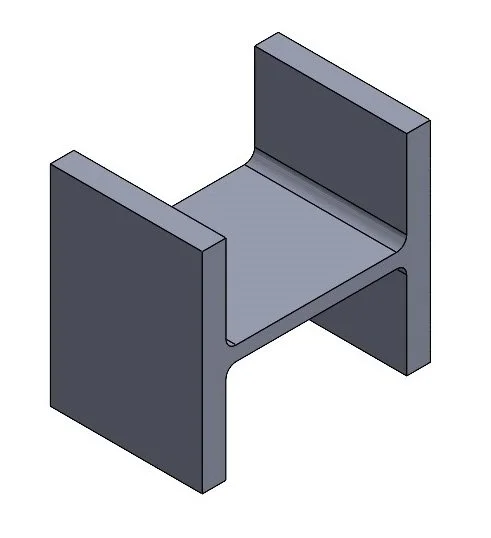

Wide-Flange Beams: Have Flanges that are Perpendicular to the Web of the Beam, Defers from the Traditional I-Beam. Found in Numerous Structural Forms of Applications which include Buildings & Bridges. Offering many Different Depth Sizes, Lengths of 40’s, 50’s & 60’s. Stock Beams from W4 x 13 to W24 x 55.

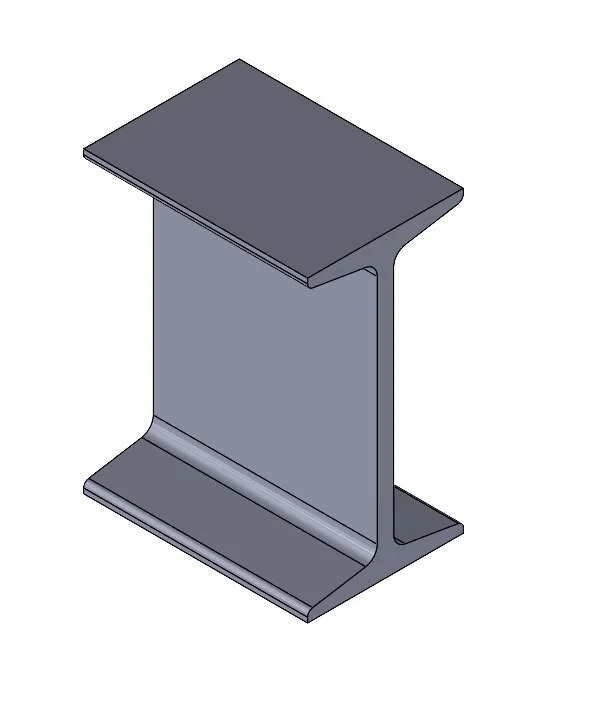

S-Beams: Referred as I-Beams, have an I Cross-Section with a Stouter Profile. The Horizontal Profile are Flanges, the Single Vertical Profile is called the Web. Most Widely Used in Construction; Uses as Beam Members and Columns. We Stock these in 40’s & 50’s.
Specifications
ASTM A572 Grade 50: Ultimate Tensile Strength of 65,300 psi, along with a High Tensile Yield Strength of 50,000 psi. Also Maintains Excellent Ductility, Making it Machined by Various Techniques and Easily Welded. Measured to Have Machinability at 66% of B1112 Steel. Properties also Support Weldability that Can Produce Strong, High-Quality Joints.
Able to Provide Mill Certificate
Call (603) 626-7351 to Place An Order

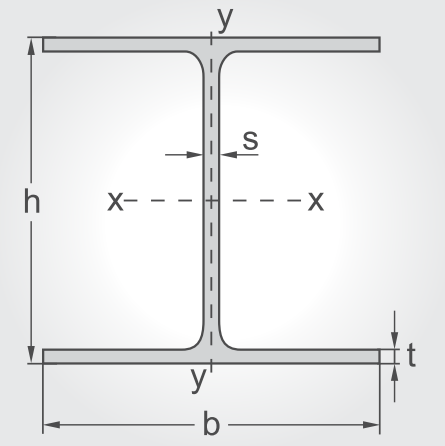

WIDE-FLANGE BEAMS
Home > All Products > Wide-Flange Beams
4” - 5” DepTH
WIDE FLANGE: 40’, 50’ & 60’s
Beam W 4” x 13# [4.16”h, .28”s, 4.06”b, .34”t]
Beam W 5” x 19# [5.15”h, .27”s, 5.03”b, .43”t]
More Sizes Available Upon Request
6” depth
WIDE FLANGE: 40’, 50’ & 60’s
Beam W 6” x 9# [5.90”h, .17”s, 3.94”b, .21”t]
Beam W 6” x 12# [6.03”h, .23”s, 4.00”b, .28”t]
Beam W 6” x 15# [5.99”h, .23”s, 5.99”b, .26”t]
Beam W 6” x 16# [6.28”h, .26”s, 4.03”b, .40”t]
Beam W 6” x 20# [6.20”h, .26”s, 6.02”b, .36”t]
Beam W 6” x 25# [6.38”h, .32”s, 6.08”b, .45”t]
More Sizes Available Upon Request
8” depth
WIDE FLANGE: 40’, 50’ & 60’s
Beam W 8” x 10# [7.89”h, .17”s, 3.94”b, .20”t]
Beam W 8” x 13# [7.99”h, .23”s, 4.00”b, .25”t]
Beam W 8” x 15# [8.11”h, .24”s, 4.01”b, .31”t]
Beam W 8” x 18# [8.14”h, .23”s, 5.25”b, .33”t]
Beam W 8” x 21# [8.28”h, .25”s, 5.27”b, .40”t]
Beam W 8” x 24# [7.93”h, .24”s, 6.49”b, .40”t]
Beam W 8” x 28# [8.06”h, .28”s, 6.53”b, .46”t]
Beam W 8” x 31# [8.00”h, .28”s, 7.99”b, .43”t]
Beam W 8” x 35# [8.12”h, .31”s, 8.02”b, .49”t]
Beam W 8” x 40# [8.25”h, .36”s, 8.07”b, .56”t]
Beam W 8” x 48# [8.50”h, .40”s, 8.11”b, .68”t]
Beam W 8” x 58# [8.75”h, .51”s, 8.22”b, .81”t]
Beam W 8” x 67# [9.00”h, .57”s, 8.28”b, .93”t]
More Sizes Available Upon Request
10”depth
WIDE FLANGE: 40’, 50’ & 60’s
Beam W 10” x 12# [9.87”h, .19”s, 3.96”b, .21”t]
Beam W 10” x 15# [9.99”h, .23”s, 4.00”b, .27”t]
Beam W 10” x 17# [10.11”h, .24”s, 4.01”b, .33”t]
Beam W 10” x 19# [10.24”h, .25”s, 4.02”b, .39”t]
Beam W 10” x 22# [10.17”h, .24”s, 5.75”b, .36”t]
Beam W 10” x 26# [10.33”h, .26”s, 5.77”b, .44”t]
Beam W 10” x 30# [10.47”h, .30”s, 5.81”b, .51”t]
Beam W 10” x 33# [9.73”h, .29”s, 7.96”b, .43”t]
Beam W 10” x 39# [9.92”h, .31”s, 7.98”b, .53”t]
Beam W 10” x 45# [10.10”h, .35”s, 8.02”b, .62”t]
Beam W 10” x 49# [9.98”h, .34”s, 10.00”b, .56”t]
Beam W 10” x 54# [10.09”h, .37”s, 10.03”b, .61”t]
Beam W 10” x 60# [10.22”h, .42”s, 10.08”b, .68”t]
More Sizes Available Upon Request
12”depth
WIDE FLANGE: 40’, 50’ & 60’s
Beam W 12” x 14# [11.91”h, .20”s, 3.97”b, .22”t]
Beam W 12” x 16# [11.99”h, .22”s, 3.99”b, .26”t]
Beam W 12” x 19# [12.16”h, .23”s, 4.00”b, .35”t]
Beam W 12” x 22# [12.31”h, .26”s, 4.03”b, .42”t]
Beam W 12” x 26# [12.22”h, .23”s, 6.49”b, .38”t]
Beam W 12” x 30# [12.34”h, .26”s, 6.52”b, .44”t]
Beam W 12” x 35# [12.50”h, .30”s, 6.56”b, .52”t]
Beam W 12” x 40# [11.94”h, .29”s, 8.00”b, .51”t]
Beam W 12” x 45# [12.06”h, .33”s, 8.04”b, .57”t]
Beam W 12” x 50# [12.19”h, .37”s, 8.08”b, .64”t]
Beam W 12” x 53# [12.06”h, .34”s, 9.99”b, .57”t]
Beam W 12” x 58# [12.19”h, .36”s, 10.01”b, .64”t]
Beam W 12” x 65# [12.12”h, .39”s, 12.00”b, .60”t]
More Sizes Available Upon Request
14”depth
WIDE FLANGE: 40’, 50’ & 60’s
Beam W 14” x 22# [13.74”h, .23”s, 5.00”b, .33”t]
Beam W 14” x 26# [13.91”h, .25”s, 5.02”b, .42”t]
Beam W 14” x 30# [13.84”h, .27”s, 6.73”b, .38”t]
Beam W 14” x 34# [13.98”h, .28”s, 6.74”b, .45”t]
Beam W 14” x 38# [14.10”h, .31”s, 6.77”b, .51”t]
Beam W 14” x 43# [13.66”h, .30”s, 7.99”b, .53”t]
Beam W 14” x 48# [13.79”h, .34”s, 8.03”b, .59”t]
Beam W 14” x 53# [13.92”h, .37”s, 8.06”b, .66”t]
Beam W 14” x 61# [13.89”h, .37”s, 9.99”b, .64”t]
Beam W 14” x 68# [14.04”h, .41”s, 10.03”b, .72”t]
More Sizes Available Upon Request
16”depth
WIDE FLANGE: 40’, 50’ & 60’s
Beam W 16” x 26# [15.69”h, .25”s, 5.50”b, .34”t]
Beam W 16” x 31# [15.88”h, .27”s, 5.52”b, .44”t]
Beam W 16” x 36# [15.86”h, .29”s, 6.98”b, .43”t]
Beam W 16” x 40# [16.01”h, .30”s, 6.99”b, .50”t]
Beam W 16” x 45# [16.13”h, .34”s, 7.03”b, .56”t]
Beam W 16” x 50# [16.26”h, .38”s, 7.07”b, .63”t]
Beam W 16” x 67# [16.33”h, .39”s, 10.23”b, .66”t]
More Sizes Available Upon Request
18”depth
WIDE FLANGE: 40’, 50’ & 60’s
Beam W 18” x 35# [17.70”h, .30”s, 6.00”b, .42”t]
Beam W 18” x 40# [17.90”h, .31”s, 6.01”b, .52”t]
Beam W 18” x 46# [18.06”h, .36”s, 6.06”b, .60”t]
Beam W 18” x 50# [17.99”h, .35”s, 7.49”b, .57”t]
Beam W 18” x 55# [18.11”h, .39”s, 7.53”b, .63”t]
More Sizes Available Upon Request

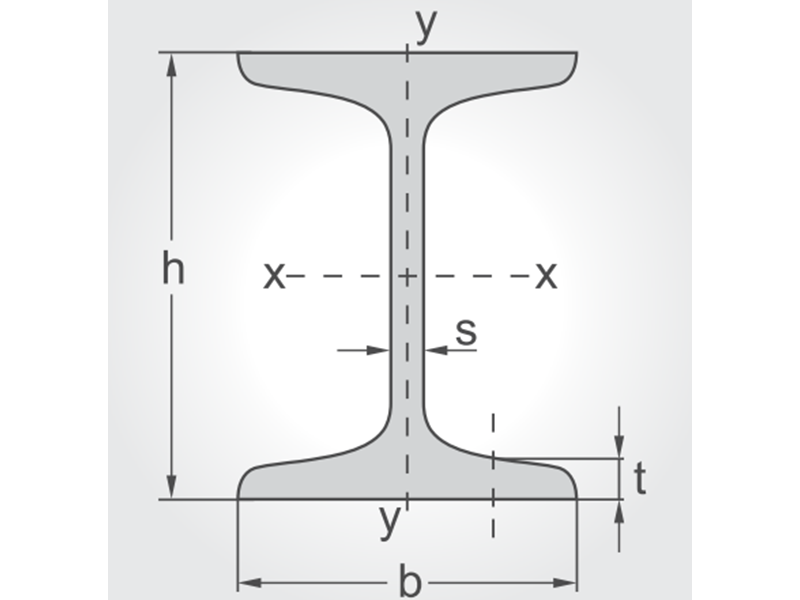

S-BEAMS (I-BEAMS)
Home > All Products > I-Beams
3” - 12” depth
S-BEAMS: 40’ & 50’s
I-Beam S 3” x 5.7# [2.33”b, .17”s]
I-Beam S 3” x 7.5# [2.50”b, .34”s]
I-Beam S 4” x 7.7# [2.66”b, .19”s]
I-Beam S 4” x 9.5# [2.79”b, .32”s]
I-Beam S 5” x 10# [3.00”b, .21”s]
I-Beam S 6” x 12.5# [3.33”b, .23”s]
I-Beam S 8” x 18.4# [4.00”b, .27”s]
I-Beam S 10” x 35# [4.94”b, .59”s]
I-Beam S 12” x 31.8# [5.00”b, .35”s]
More Sizes Available Upon Request
